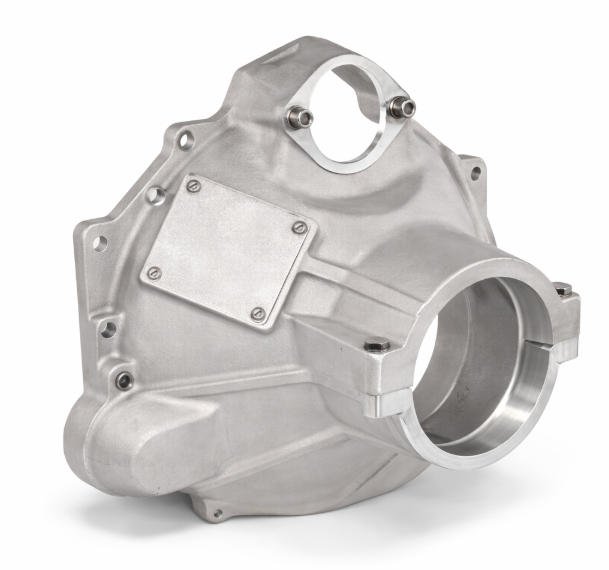

Custom Aluminum Bell Housing Manufacturer
Yongzhu manufactures custom aluminum bell housing castings for automotive, drivetrain and industrial power transmission projects. We support equipment manufacturers, system suppliers and aftermarket product companies based on customer drawings, 3D models or approved samples.
Tooling, aluminum die casting, CNC machining, surface finishing and inspection can be coordinated within the confirmed project scope—from raw castings to machined housing components.
Custom Bell Housing Projects We Can Support
Bell housing structures vary according to the intended engine, motor, transmission, gearbox and internal assembly. Yongzhu evaluates each project around its required interfaces, casting geometry and supply condition.
Automotive Drivetrain Housings
Motor and Gearbox Connection Housings
Clutch and Flywheel Enclosures
Custom Interface Housings
What We Check Before Tooling
A bell housing must connect adjoining assemblies while providing the required position, clearance and mounting features.
Mounting layout
Identify bolt patterns and connection points that must match adjoining parts.
Locating features
Confirm the center opening, locating diameters or reference surfaces used to position the housing.
Machining scope
Separate features that can remain as-cast from those requiring CNC work.
Casting geometry
Review walls, ribs and access to features that may affect tooling or later operations.
These decisions help define what is included in the tooling plan, sample review and part quotation.
From Approved Design to Repeat Production
Yongzhu coordinates the major manufacturing stages required to turn an approved bell housing design into repeatable aluminum castings.
Drawing and RFQ Review
We review the available 2D drawing or 3D model, alloy, quantity, critical dimensions, finish and application requirements.
DFM, Quotation and Tooling Plan
Manufacturing risks, tooling scope, machining, finishing, inspection, price and estimated schedule are reviewed before the project starts.
Mold Making and T1 Approval
The mold is made to the approved drawing revision. T1 samples are submitted for dimensional, assembly, appearance or functional review as agreed.
Production, Inspection and Delivery
Approved parts move through die casting, secondary operations, final inspection, packaging and shipment according to the confirmed order requirements.
Inspection Focus for Fit and Alignment
Inspection points are selected from the approved drawing and the requirements confirmed before production. The actual inspection plan depends on the part design, application and agreed supply scope.
| Feature | Why It Matters | Possible Inspection Focus |
|---|---|---|
| Mating faces | Connects the housing with adjoining components | Flatness, surface condition and drawing-defined dimensions |
| Center openings and locating diameters | Supports relative positioning between assemblies | Diameter, position and datum-based dimensional inspection |
| Bolt patterns and mounting holes | Affects fastening and installation | Hole position, diameter, thread and locating dimensions |
| Machined bores and openings | Affects fit with mating parts | Size, position and specified surface requirements |
| Ribs and structural areas | Supports the housing structure | Visual condition and drawing-defined dimensions |
| Internal casting quality | May be required for selected applications | Additional inspection when specified and agreed |
Related Engine and Transmission Castings
Yongzhu also supports custom production for related automotive and powertrain aluminum casting projects.
Quality Management and Certifications
Our quality management system is supported by documented procedures and applicable certifications. Project-specific inspection records, material documents or other required documentation should be confirmed during quotation.
Send Drawings by Email
Prefer email? Send your drawings and project details directly to our team.
- Accepted files: STEP, STP, IGES, X_T, DWG, PDF
- Drawings do not need to be production-ready
- Files are used only for project review and quotation
- NDA review is available when required
- yongzhucasting@gmail.com
- +86 13858107710
- Zhuji City, Zhejiang Province, China
- Zhejiang Yongzhu Casting Technology Co., Ltd.
Request a Quote Online
Complete the available fields and upload your drawing if possible. We will contact you if additional project information is required.
Questions Buyers Ask About Custom Bell Housings
Do you sell ready-made bell housings for specific vehicle models?
No. Yongzhu primarily manufactures custom aluminum castings for business customers. We do not operate a retail catalogue of vehicle-specific replacement bell housings. A new project normally begins with a customer drawing, 3D model, approved sample or established product specification.
How is ownership of custom bell housing tooling handled?
Tool ownership, payment, storage, maintenance and future modification responsibilities should be confirmed in the quotation or project agreement before mold production begins. Include any specific tooling conditions in your initial inquiry.
Can customer part numbers, logos or identification marks be added?
Such features can be evaluated during the drawing and tooling review. The suitable method depends on the casting design, available surface area, tooling arrangement and traceability requirements.
Can confidentiality be arranged before technical drawings are shared?
Yes. If an NDA or a particular drawing-exchange procedure is required, mention it in your initial message. The applicable terms and file-transfer method can then be confirmed before sensitive project documents are provided.
